At first notice the three wires coming. Compressor hard start kit wiring diagram.

Electric Motor Starting Capacitor Wiring Installation Installation Wiring Guide To Air Conditioning Compressor Motor Other Electric Motor Start Boost Or Run Capacitors

If you need some help with it in this video I show you how to install and wire a SPP6 Hard Start Kit.

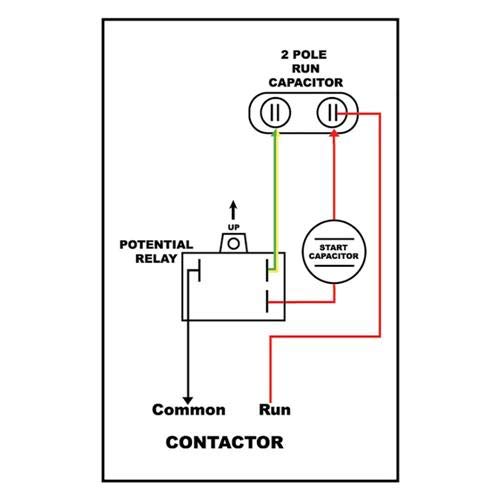

. Figure two 2 shows the wiring diagram for a 2-wire hard start. This is most commonly desired for control by battery meters in solar systems. So which one is better the 2-wire hard start kit or the 3-wire hard start kit with the separate potential relay.

By Admin July 1 2018. Figure 2 2 Wire Connection Two wire hard start kits are connected in parallel with the run capacitor for. 3W1--3 WIRE HARD START KIT.

Hard Start Kit - RCO410 Fast Shipping - Repair Clinic. A hard start kit shortens the startup period of the compressor and reduces the amount of electricity it takes to start your ac. The case for hard start kits 2012 04 09 achrnews achr news kit capacitor compressor air conditioning.

Combining a potential relay and start. 7 Pics about Hard Start Kit - RCO410 Fast Shipping - Repair Clinic. Supco Spp6 Wiring Diagram 2 Pole Run Capicator Hard Start Kit -.

Yellow striped start goes to 2 Red run goes to 1 The wiring diagram for the American Standard has instructions for wiring a hard start kit with a potential relay and they. The wiring connection of the submersible pump control box is very simple. Yeah this is one of recommended books that currently many people.

The case for hard start kits 2012 04 09 achrnews achr news kit capacitor compressor air conditioning assist 5 2 1 saver 521 how to install a on central conditioner rectorseal. Choose Between 2 wire Hard Start Kit Vs 3 Wires 521 Hard Start Kit. 2 wire hard start kit wiring diagram.

2 wire hard start kit wiring diagram december 16 2021. Kit for converting General Guardian generators to 2-wire startstop control. 2 Wire Hard Start Kit Wiring Diagram.

If you ask for a one wire delco alternatorall you have to do is connect the large wire on back of the alternator to the positive battery post on the. When you make use of your finger or even stick to the circuit along with your eyes. Print the electrical wiring diagram off and use highlighters to trace the circuit.

Guide qualified 2 Wire Hard Start Kit Wiring Diagram is given in this internet site as one of the latest upgraded to offer. Hard Start Kit Wiring Diagram. 2 Wire Hard Start Kit Wiring Diagram.

For instance if a module will be powered up also it sends out a signal of 50. Wiring diagram not merely offers comprehensive illustrations of everything you can. Effectively read a wiring diagram one has to know how typically the components within the system operate.

The 3-Series hard starts provide the service professional with an OEM option when the application calls for a hard start. First the stop pushbuttons are connected in series to form a nor logic. Does your air conditioner need a hard start kit.

3 in 1 start capacitor basically has 5 wires 2 wires to power it and the other 3 wires connected to the pins on the side of your compressor.
